Floorplan

Draw, trace or describe a home, furnish it, then walk through it in 3D. All in the browser.

Open floorplan.hmeid.uk

What it is

Floorplan draws to-scale floor plans and turns them into a 3D model you can walk around. Draw it by hand, upload an estate agent's floorplan and have Claude redraw it to scale, or just describe what you want and let Claude build it with its tools. No account and no server for your plans: they stay in your browser.

  • 21tools Claude can use to edit a plan
  • 26s → 2sto open a sample home in 3D
  • 3views: plan, 3D and walk
  • 0accounts or plan storage on a server

Key features

  • Trace a floorplan with AI

    Claude reads the walls, printed measurements, doors, windows, stairs and floors from a picture. Every wall is marked measured, derived or estimated, so guesses are never hidden.

  • Edit by chatting

    Ask for a two-bed flat or sage-green bedroom walls, attach a photo of furniture to build or a room to match. In 3D, the chat knows which room you are looking at.

  • Plan, 3D and walk

    Click anywhere to walk there, with pathfinding around furniture and doors that open as you pass. First or third person, keyboard or trackpad.

  • Homes with several floors

    Floors side by side like a sales brochure, with straight, L-shaped or winder stairs, and checks for stairs that are too steep or lead nowhere.

  • Furnish and paint

    A furniture library with rendered thumbnails, custom objects built by chat, wall paint, floor finishes, gardens and patios.

  • Export and share

    PNG, SVG, PDF to scale, CSV schedules, and share links that carry the whole plan inside the URL itself.

In action

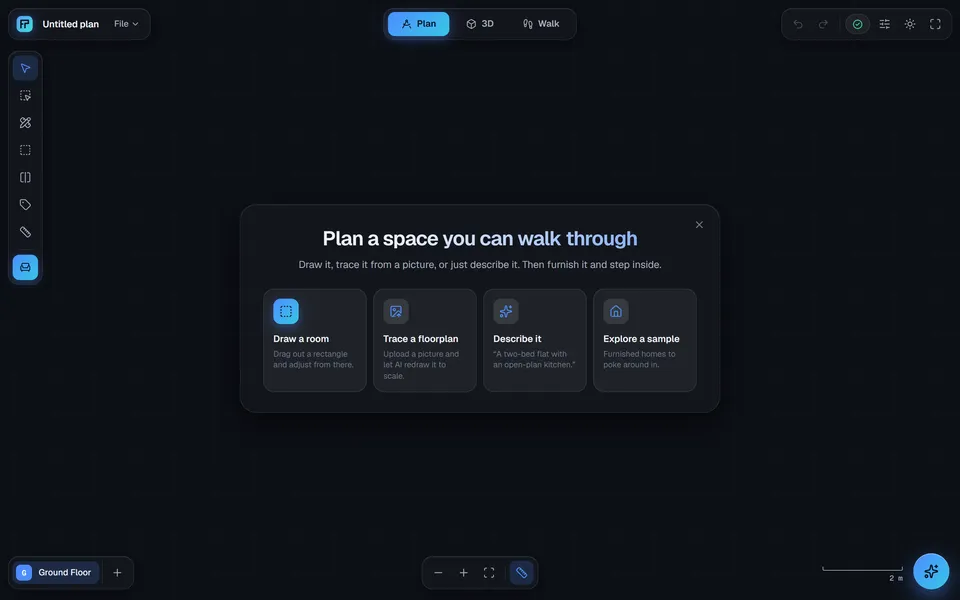

The welcome screen offers four ways to start: draw, trace a picture, describe it, or open a sample.

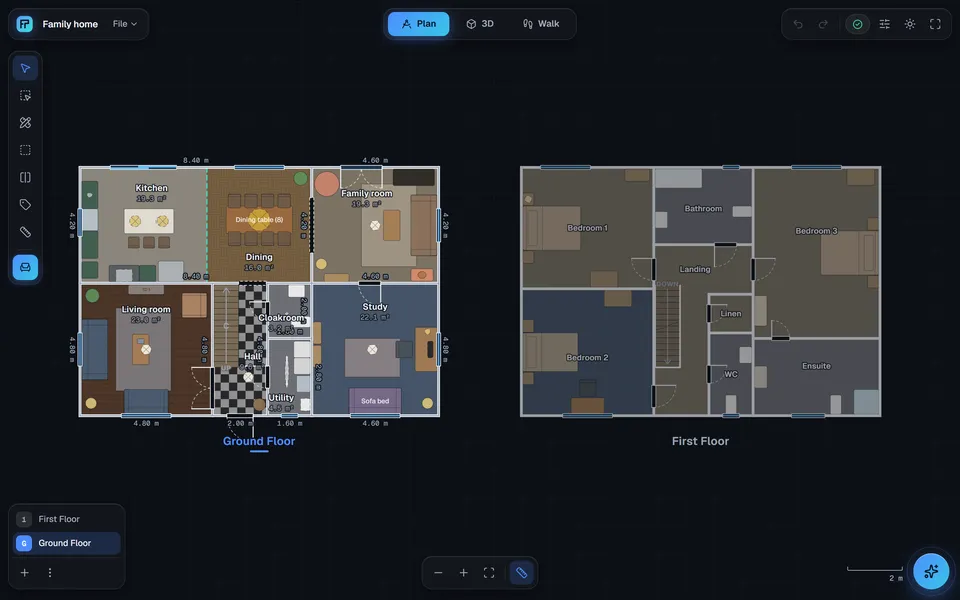

The furnished two-storey Family home sample, with both floors drawn side by side to scale.

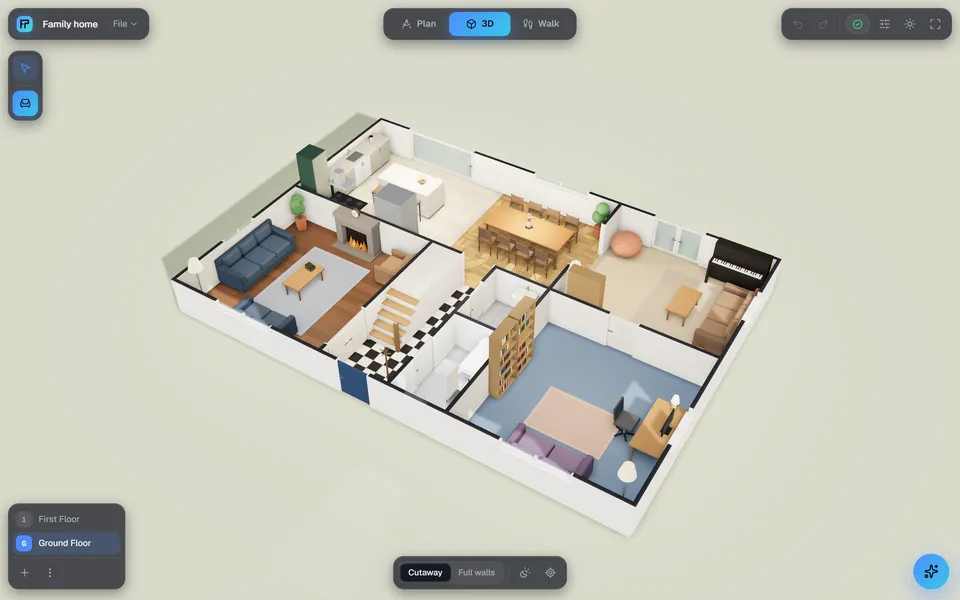

The same ground floor as a 3D cutaway model with furniture, flooring and lighting.

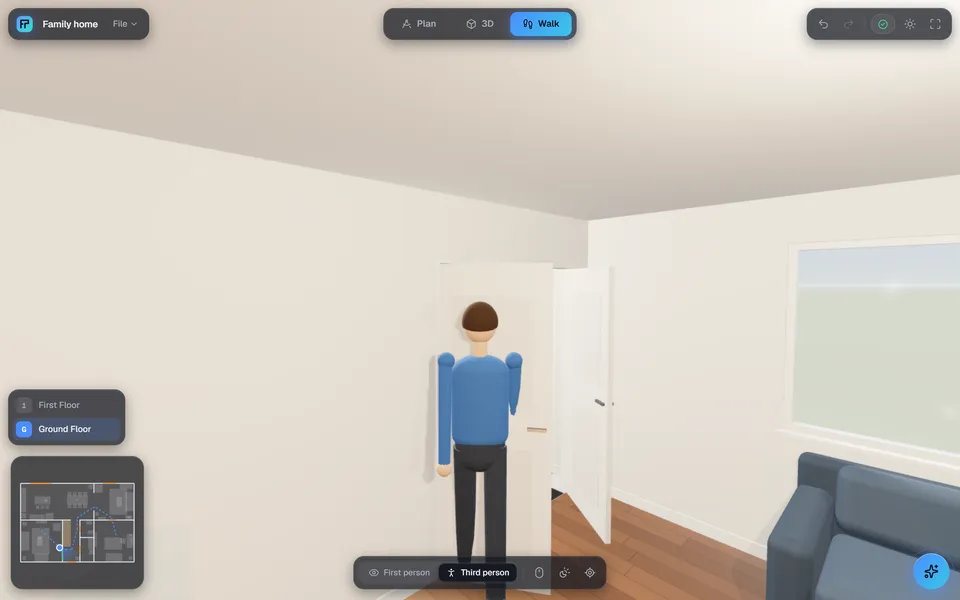

Walk mode in third person, with a door swinging open on the route shown on the minimap.

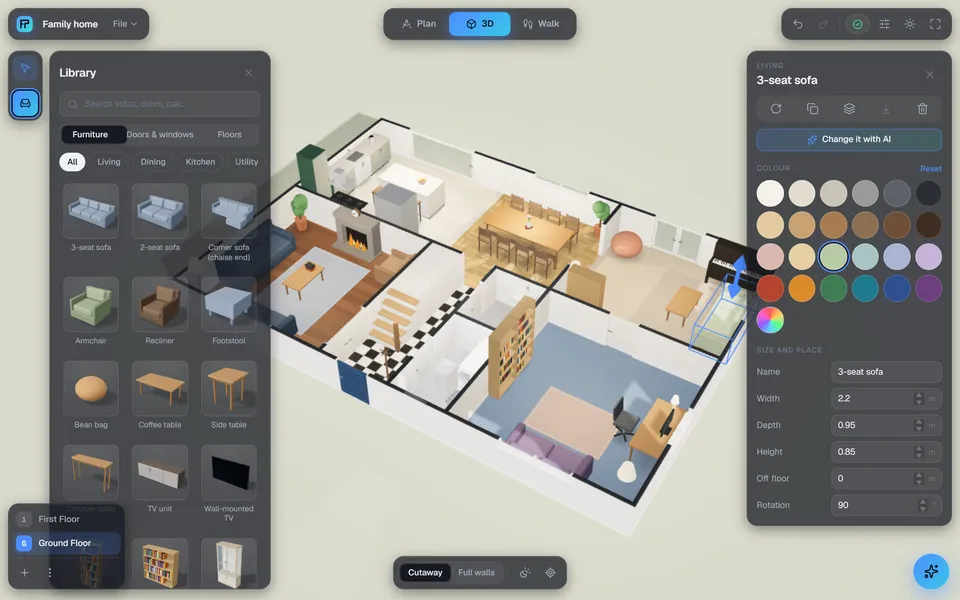

The furniture library and inspector, with a sofa recoloured sage green.

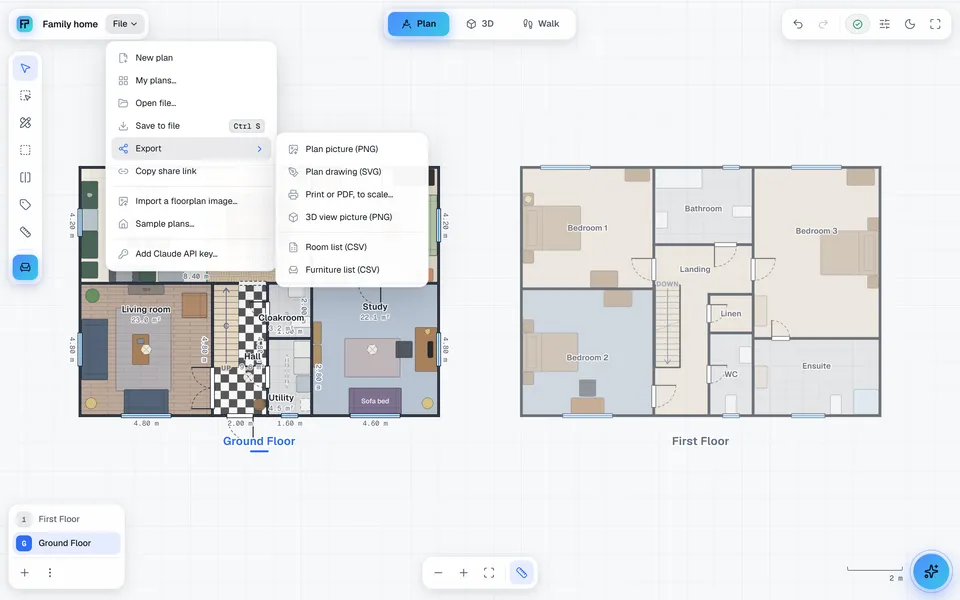

Light theme with the Export menu: PNG, SVG, print to scale, 3D picture and CSV lists.

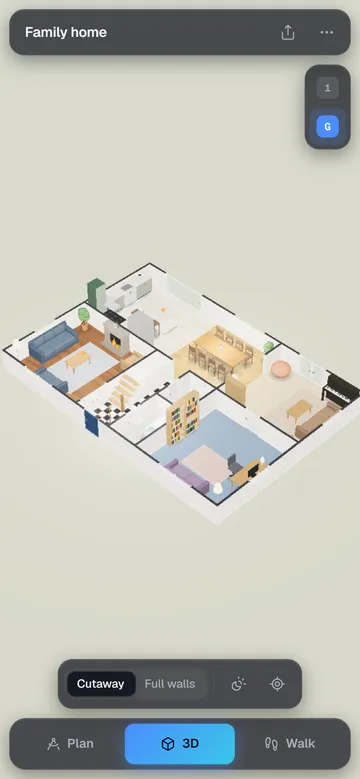

The Family home in 3D on a phone.

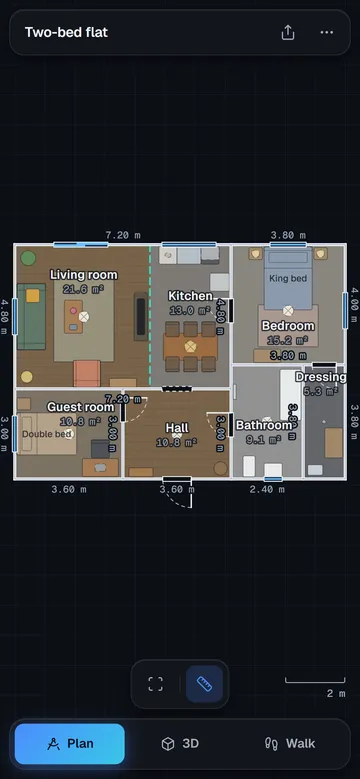

The Two-bed flat sample's floor plan on a phone.
Under the hood

The parts that aren't obvious

  1. The AI reads, code builds

    The model only reports what is printed on the plan, and is told never to adjust a measurement to make a room fit. Code then checks each room closes, fills in unlabelled walls and snaps shared corners together.

  2. An agent loop in the browser

    Up to 30 tool steps per turn, with edits applied as each streamed tool call completes, so the plan changes live. A whole turn is one undo step and rolls back if it fails.

  3. Share links without a server

    Plans are packed, compressed and stored in the URL fragment, which browsers never send to a server. The format is versioned so old links keep working.

  4. A hand-built 3D engine

    Built on three.js, it renders only when something moves, merges furniture into a few meshes and adapts resolution on slow machines. That took a sample home from 26 seconds to under 2 to appear.

  5. Locked down

    A Content Security Policy only lets the page talk to the Claude API, and the key is encrypted with AES-GCM using a passphrase-derived key (600,000 rounds).

Built with

App
  • React 19
  • TypeScript
  • Vite
  • Zustand
  • Zod
3D
  • three.js
  • Custom engine
  • A* pathfinding
AI
  • Claude Opus 5.5
  • Tool use
  • Structured outputs
  • Vision
Hosting
  • DigitalOcean (static)
  • Cloudflare
  • Cloudflare Workers + KV
